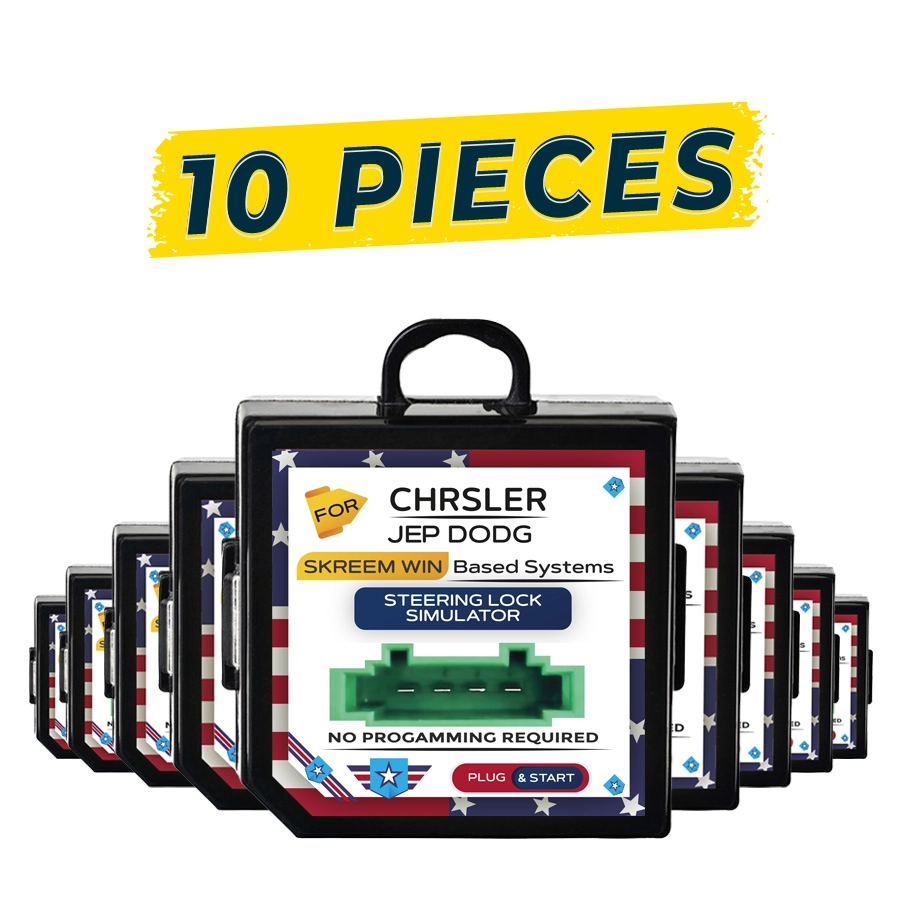

Chrysler Jeep Dodge Fiat ESL Electronic Steering Lock Emulator Simulator 10 Pieces

Chrysler Jeep Dodge ESL Electronic Steering Lock Emulator Overview:

JEEP Electronic Steering Lock Problem Is One Among The Foremost Frequent Problems In JEEP Starting System,

JEEP Dealer Need To Order New Steering Lock And Program It Which Is Just Too Much Costly And Required While Of Waiting.

• ELV Is A Self-occurring Mechanical Failure In The Steering Column Lock.
• The Occurrence Of The Fault Does Not Depend On Any Fault.
• In Case Of Malfunction, Even If There Is No Problem In The Vehicle Key,
• The Working Key Will Not Start The Vehicle Because The ELV Steering Column Lock Will Not Be Activated.
• In This Case, A New ELV Steering Column Lock Must Be Installed In The Vehicle And Programmed Into The Vehicle.
• Steering Lock Problem Is One Among The Foremost Frequent Problems In Chrysler Jeep Dodge Starting System,
• Chrysler Jeep Dodge Dealer Need To Order New Steering Lock And Program It Which Is Just Too Much Costly And Required While Of Waiting.
• Electronic Steering Lock Chrysler Jeep Dodge Emulator Will Fix Your Steering Lock Malfunction Error,
• And Therefore The Chrysler Jeep Dodge Esl Elv Universal Steering Lock Emulator Will Bypass Chrysler Jeep Dodge Elv always.No Require Coding, Simply Connect it , And It’ll Fix Your Chrysler Jeep Dodge Esl Fail

M4KEY Chrysler Jeep Dodge ESL Electronic Steering Lock Emulator Compatible Part Number

• 05026132AC
• 5026464AA
• 5057278AC

M4KEY Chrysler Jeep Dodge ESL Electronic Steering Lock Emulator LED behavior:

• After Connecting To The Car, Or To The Testing Cables, Insert The Car Key To The Switch
• If Emulator Light Turn Green That Mean It’s Connected Well And Therefore The Car Is Prepared To Start Out
• If Emulator Light Turn Red That Mean The Key Doesn’t Belong To An Equivalent Eis / Ezs Otherwise You Have Eis Problem
• If Emulator Light Didn’t Turn No You Want To Check The Facility Supply Of The Car / Cables

M4KEY Chrysler Jeep Dodge ESL Electronic Steering Lock Emulator Pinout:

• Pin1: +12v
• Pin2: GND
• Pin3: not used
• Pin4: LIN line

M4KEY Chrysler Jeep Dodge ESL Electronic Steering Lock Emulator Installation:

• How To Use or Fix Esl Steering Lock M4Key Emulator ?
• Unplug The Elv Wire From The First Car Steering Lock Unit.
• If Vehicle Steering Lock Is In Lock Mode, Steering Lock Must Be Faraway From The Car
• Connect Our M4Key Elv Emulator To The Car And Begin The Car.

Fitments:

• Chrysler

• Fiat Freemont

• Jeep Cherokee Ram

• Dodge

Chrysler Jeep Dodge 05026132AC 5026464AA 5057278AC
