For Ford Mondeo S-Max | Galaxy Steering Lock Emulator

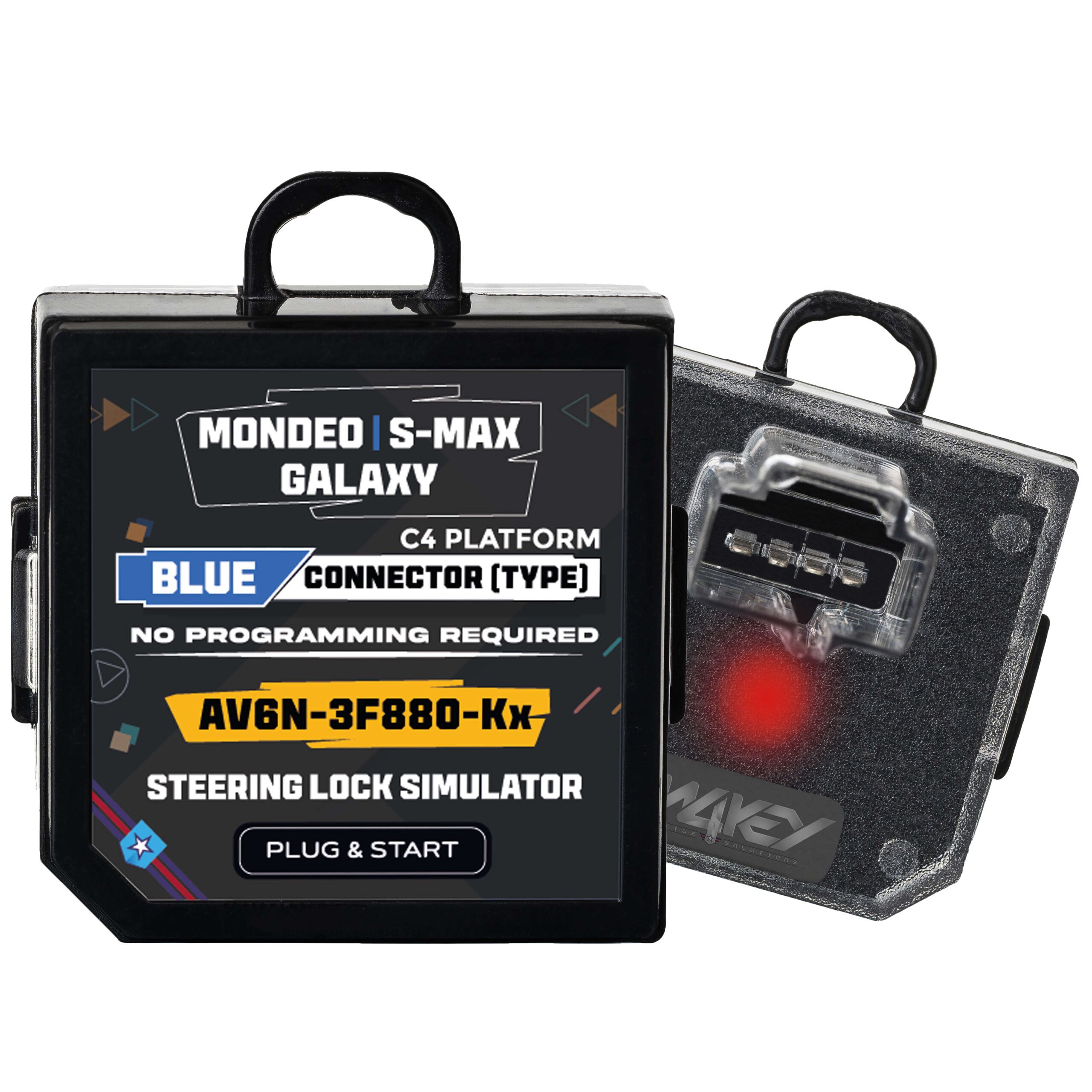

M4Key For Ford Mondeo | S-Max | Galaxy |Steering Lock Simulator Emulator Overview:

Device Emulates Ford ESCL Unit, compatible with Ford CD4 Platform Cars ( Mondeo , S-Max Galaxy etc) Stating form 2014 and up.

Original SCL Number Looks Like Av6N-3F880-Kx , Connector COLOR BLUE  has 4 Pins

Plug & Play, No Programming Required.

• ELV is a self-occurring mechanical failure in the steering column lock
• The occurrence of this failure is not caused by any fault.
• In case of malfunction, even if there is no problem in the vehicle key, ordinarily functioning key will not start the vehicle because the ELV steering column lock will not be activated.
• In this case, a new ELV steering column lock must be installed in the vehicle and programmed into the vehicle.
• Steering lock problem is one among the foremost frequent problems in Ford Mondeo S-Max Galaxy starting system, dealer needs to order a new steering lock and program it which is just too costly and time-consuming.
• Instead, use our Electronic Steering Lock Ford Mondeo S-Max Galaxy Emulator which will fix your steering lock malfunction error.
• The Ford Mondeo S-Max Galaxy ESL ELV Universal Steering Lock Emulator will always bypass Ford Mondeo S-Max Galaxy ELV.
• No coding requred, simply connect it. It’ll fix your Ford Mondeo S-Max Galaxy ESL fail

M4KEY For Ford Mondeo S-Max Galaxy Steering Lock Simulator/Emulator Installtion on Car :

• Turn off the ignition switch.
• Plug the connector into the emulator socket.
• The SCL works only when it receives an open and close command.
• You push the start button and the green led should light. If a red led blinks, there is an error you have to correct by a diagnostic tool or you can reset the car by plugging the battery out and in again and again till it turns green.

M4KEY For Ford Mondeo | S-Max Galaxy Steering Lock Simulator/Emulator Light Behavior:

1-Red SCL in “locked” state.
2-Green SCL in “unlocked” state.

Ford Mondeo S-Max | Galaxy Steering Lock
