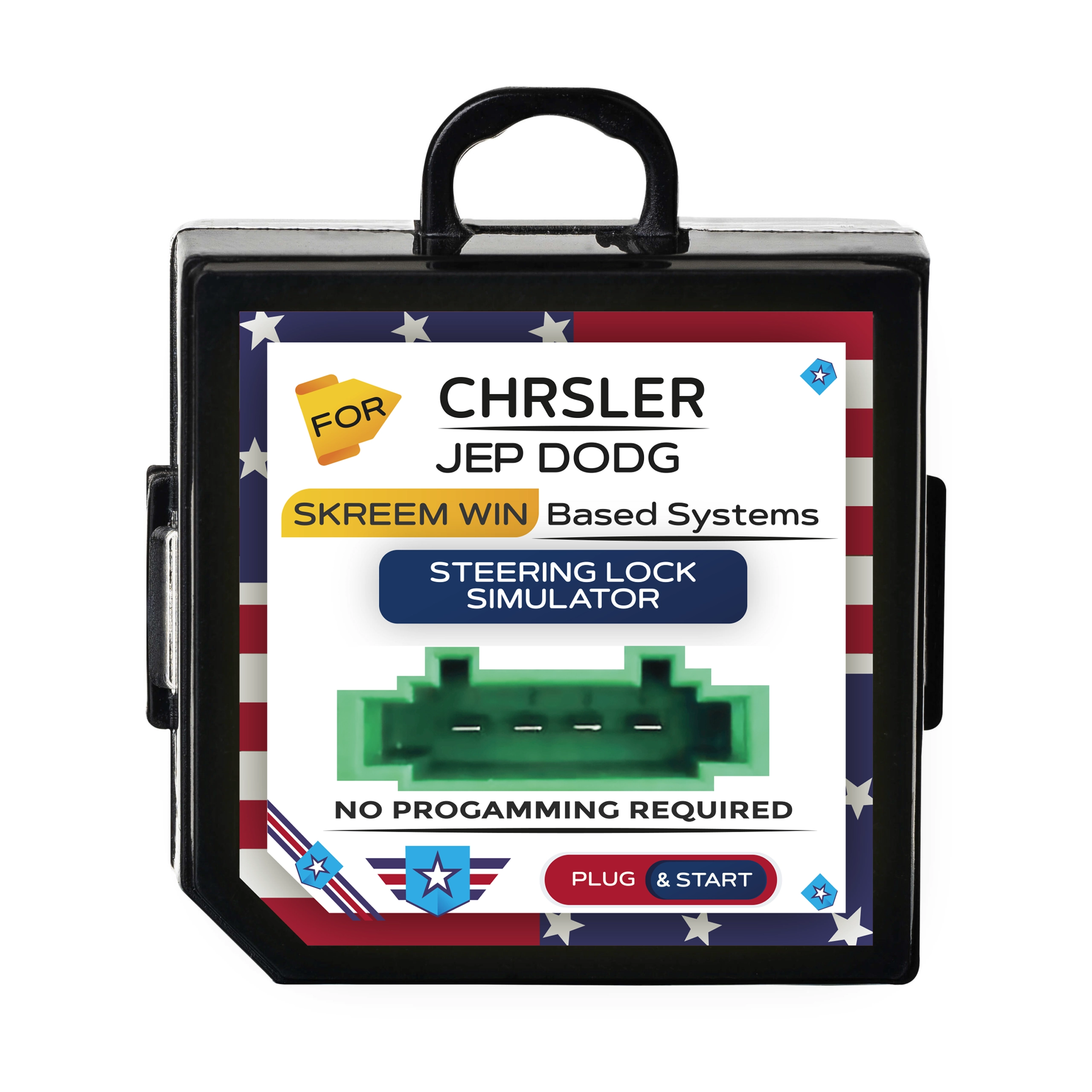

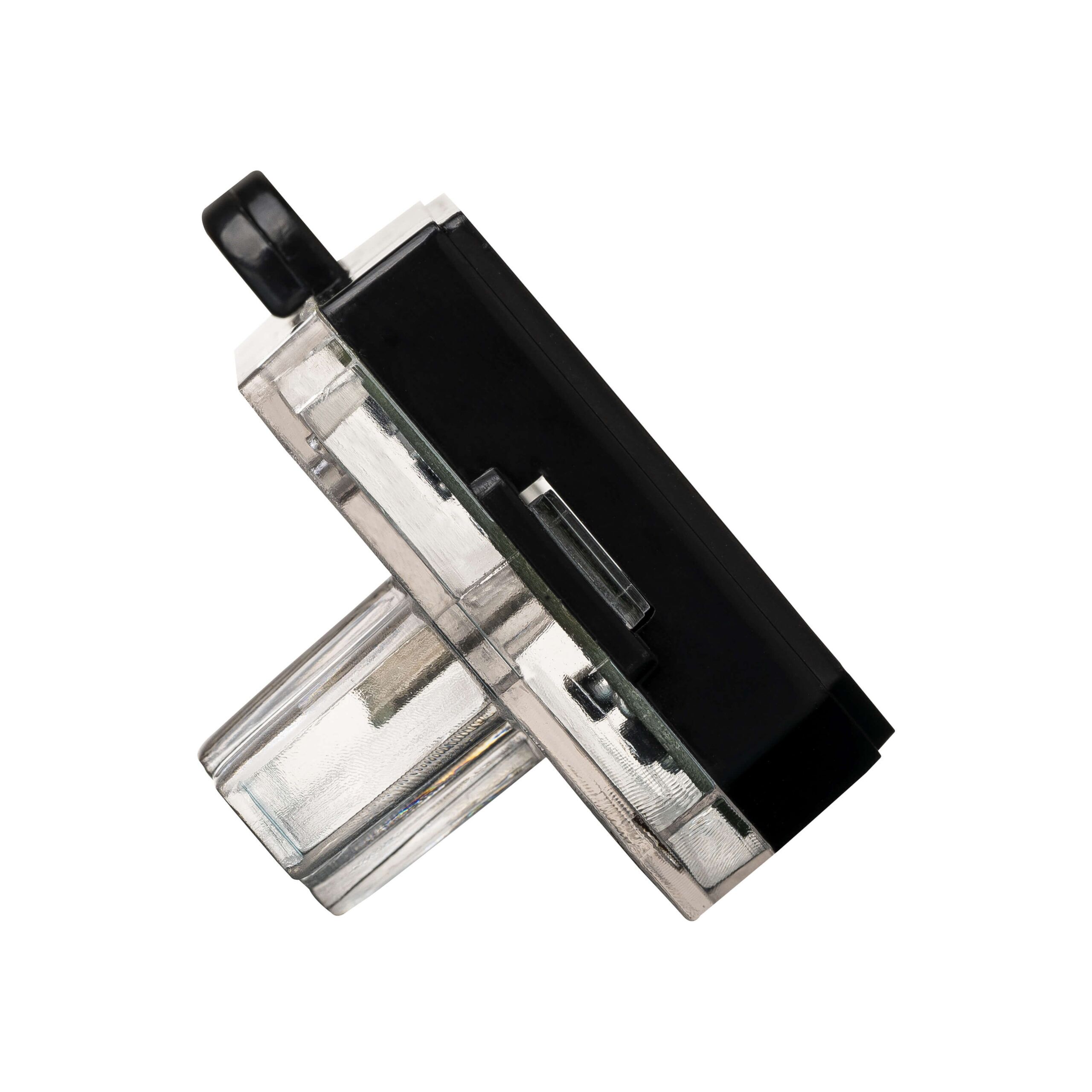

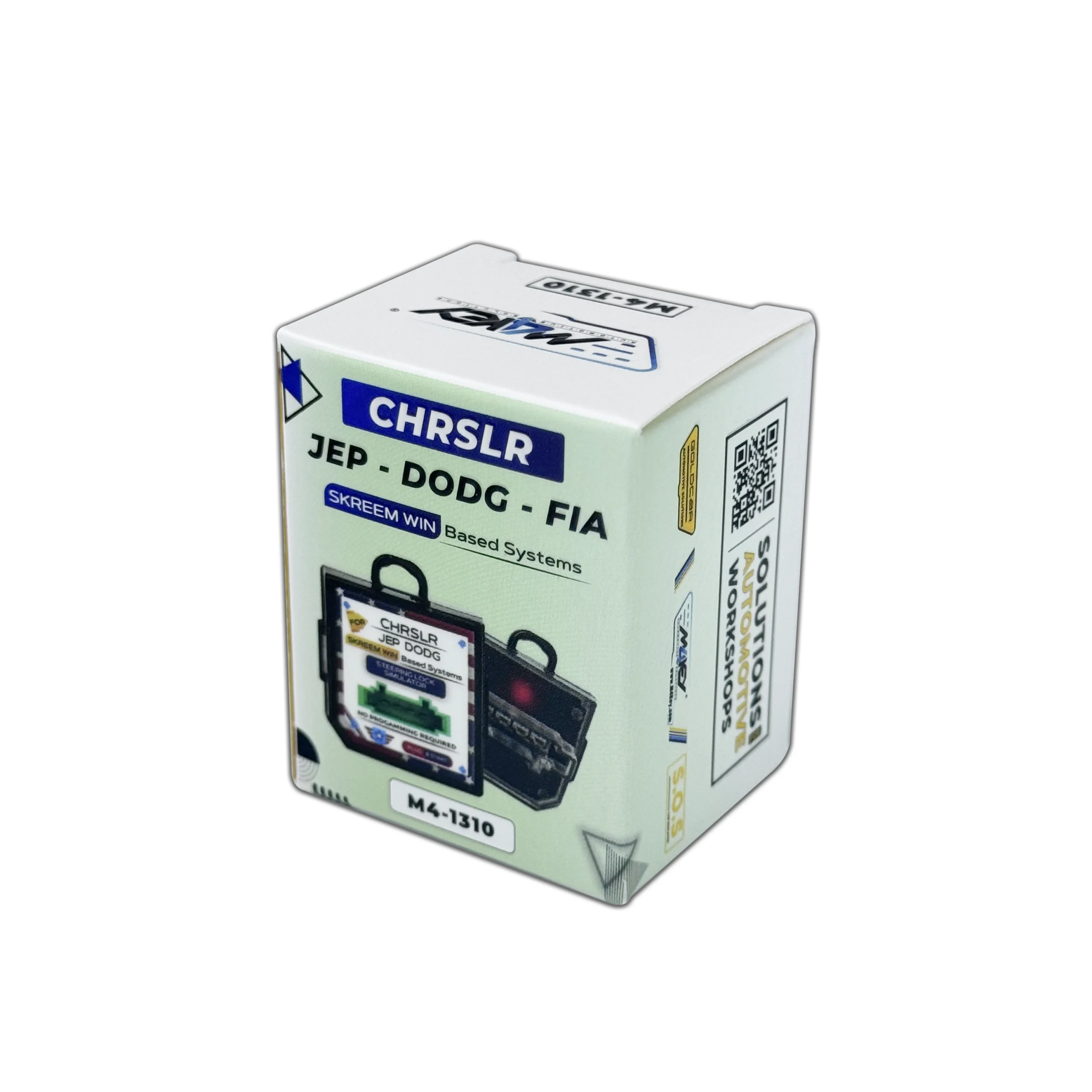

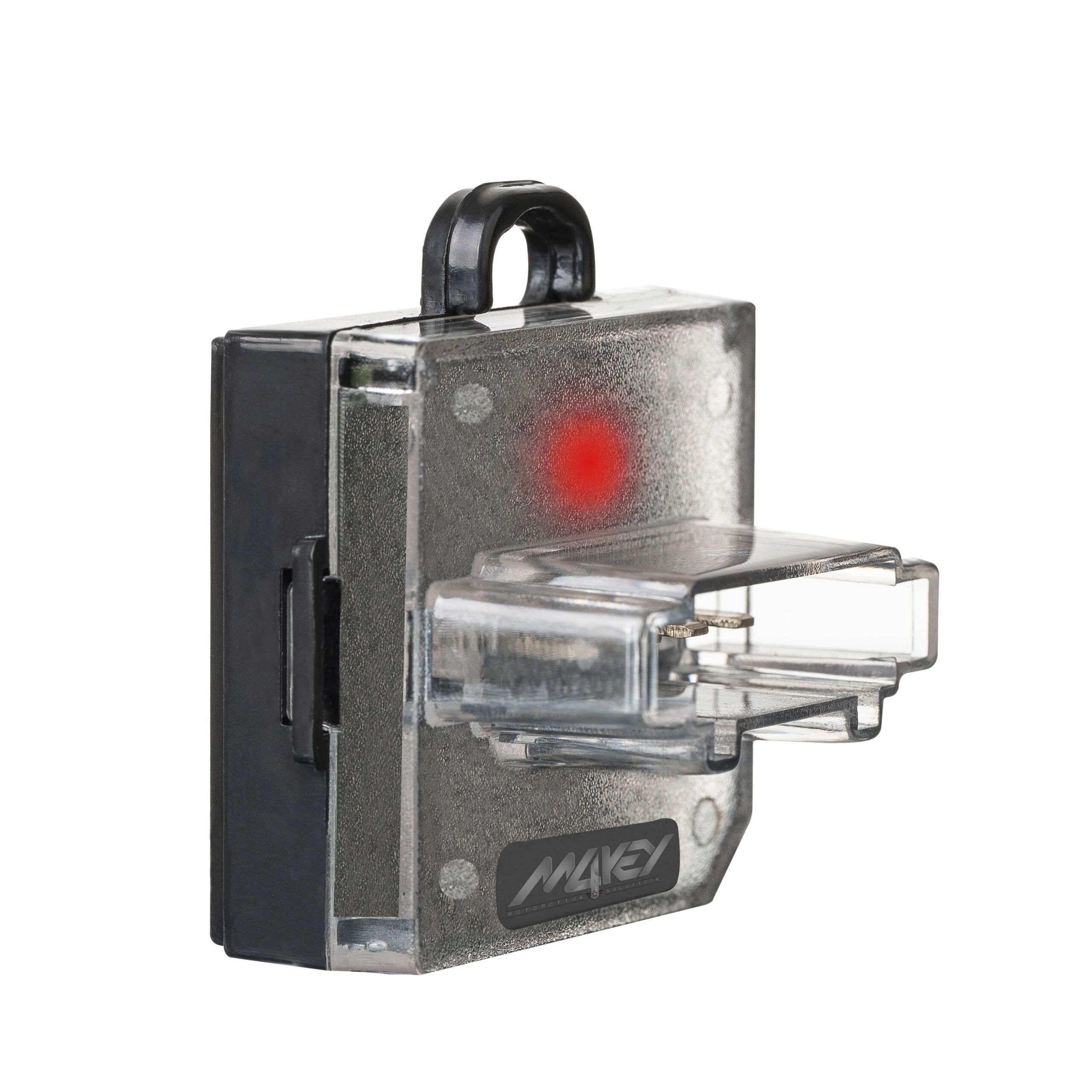

For Chrysler Jeep Dodge Fiat ESL Electronic Steering Lock Emulator


Plug & Play

Product Code M4-1310
Categories M4KEY Emulators
Manufacturer M4KEY

50,00

Compare
Manufacturer Condition Weight
M4KEY New 25 g
For Chrysler | Jeep | Dodge | Fiat | 05026132AC / 5026464AA / 5057278AC steering column lock emulator / simulator

M4KEY Chrysler Jeep Dodge ESL Electronic Steering Lock Emulator Overview:

  • ELV is a self-occurring mechanical failure in the steering column lock.
  • The occurrence of this failure is not caused by any fault.
  • In case of malfunction, even if there is no problem in the vehicle key, ordinarily functioning key will not start the vehicle because the ELV steering column lock will not be activated.
  • In this case, a new ELV steering column lock must be installed in the vehicle and programmed into the vehicle.
  • Steering lock problem is one among the foremost frequent problems in Chrysler Jeep Dodge starting system.
  • Chrysler Jeep Dodge dealer needs to order a new steering lock and program it which is just too costly and time-consuming.
  • Instead, use our Electronic Steering Lock Chrysler Jeep Dodge Emulator which will fix your steering lock malfunction error.
  • The Chrysler Jeep Dodge ESL ELV Universal Steering Lock Emulator will always bypass Chrysler Jeep Dodge ELV.
  • No coding required, simply connect it. It’ll fix your Chrysler Jeep Dodge ESL fail.

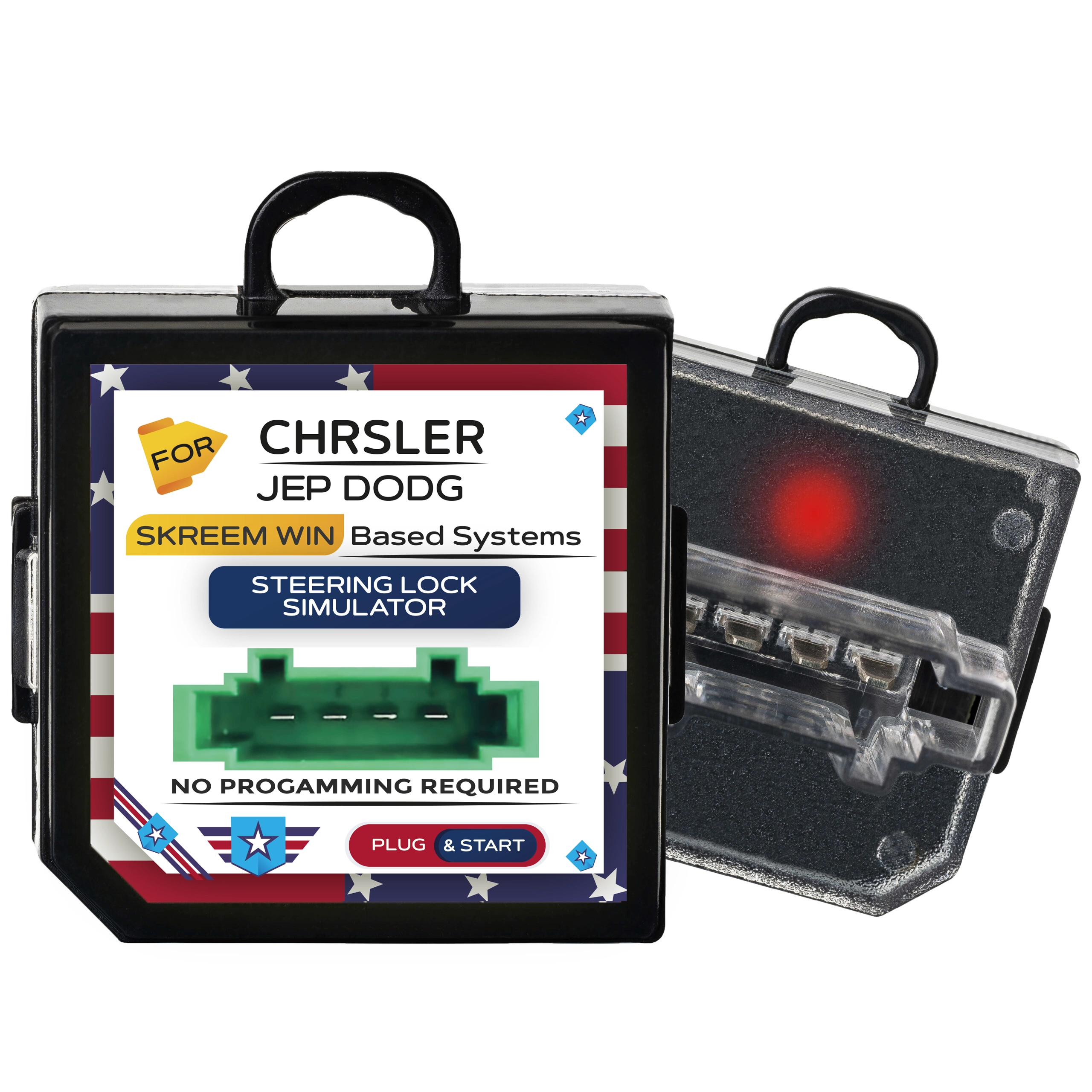

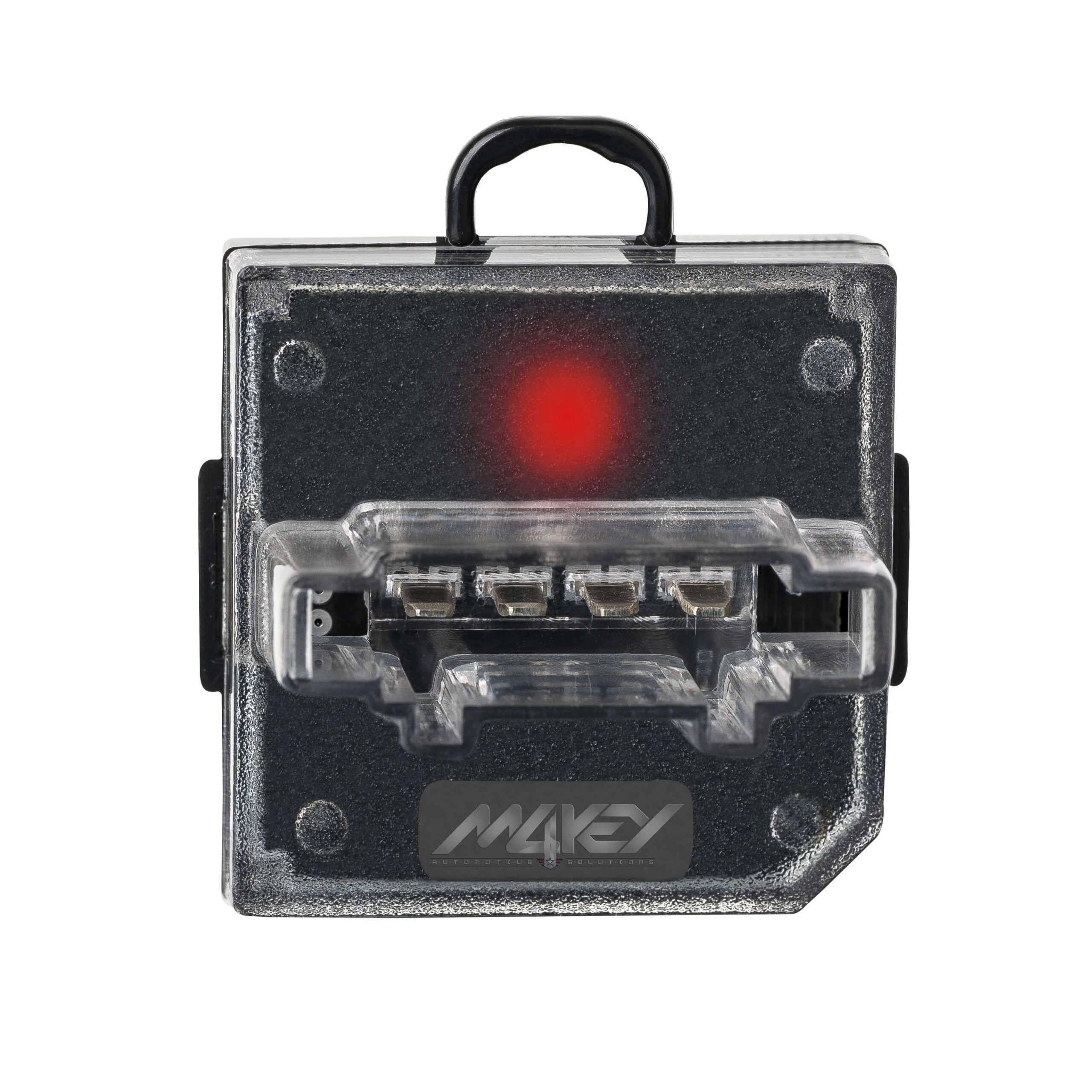

M4KEY Chrysler Jeep Dodge ESL Electronic Steering Lock Emulator LED Behavior:

  • After connecting it to the car, or to the testing cables, insert the car key to the switch.
  • If emulator light turns “green” that means it’s connected successfully and the car is ready to go.
  • If emulator light turns “red” that means either the key doesn’t belong to an equivalent EIS / EZS or you have EIS problem
  • If emulator light didn’t turn on at all, you might want to check the facility that is the supplier of the car / cables

 Steering Lock Emulator Pinout:

  • Pin1: +12v
  • Pin2: GND
  • Pin3: not used
  • Pin4: LIN line

Steering Lock Emulator Installation:

  • First, unplug the ELV wire from the car steering lock unit.
  • If vehicle steering lock is in “lock” mode, steering lock must be away from the car.
  • Connect our M4KEY ELV emulator to the car and start the car.
Fitments:
  • Chrysler
  • Fiat Freemont
  • Jeep Cherokee Ram
  • Dodge

Compatible Part Number

  • 05026132AC
  • 5026464AA
  • 5057278AC
M4Key Chrysler Jeep Fiat Dodge ESL Electronic Steering Lock Emulator 05026132AC_5026464AA _5057278AC M4Key Chrysler Jeep Fiat Dodge ESL Electronic Steering Lock Emulator_05026132AC_5026464AA _5057278AC   For Chrysler Jeep Dodge Fiat
For Chrysler Jeep Dodge Fiat ESL Electronic Steering Lock Emulator Simulator
